sqfs_frag_table_t Struct Reference

Abstracts reading, writing and management of the fragment table. More...

#include <frag_table.h>

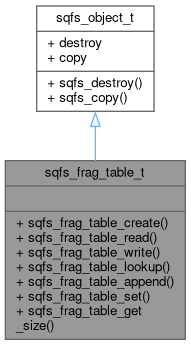

Inheritance diagram for sqfs_frag_table_t:

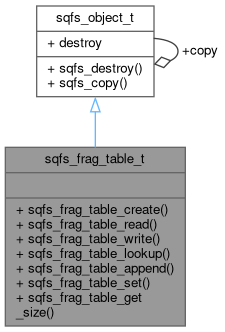

Collaboration diagram for sqfs_frag_table_t:

Public Member Functions
SQFS_API sqfs_frag_table_t *	sqfs_frag_table_create (sqfs_u32 flags)
	Create a fragment table.
SQFS_API int	sqfs_frag_table_read (sqfs_frag_table_t *tbl, sqfs_file_t *file, const sqfs_super_t *super, sqfs_compressor_t *cmp)
	Load a fragment table from a SquashFS image.
SQFS_API int	sqfs_frag_table_write (sqfs_frag_table_t *tbl, sqfs_file_t *file, sqfs_super_t *super, sqfs_compressor_t *cmp)
	Write a fragment table to a SquashFS image.
SQFS_API int	sqfs_frag_table_lookup (sqfs_frag_table_t *tbl, sqfs_u32 index, sqfs_fragment_t *out)
	Resolve a fragment block index to its description.
SQFS_API int	sqfs_frag_table_append (sqfs_frag_table_t *tbl, sqfs_u64 location, sqfs_u32 size, sqfs_u32 *index)
	Append a table entry to a fragment table.
SQFS_API int	sqfs_frag_table_set (sqfs_frag_table_t *tbl, sqfs_u32 index, sqfs_u64 location, sqfs_u32 size)
	Modify an existing entry in a fragment table.
SQFS_API size_t	sqfs_frag_table_get_size (sqfs_frag_table_t *tbl)
	Get the number of entries stored in a fragment table.

Additional Inherited Members
Static Public Member Functions inherited from sqfs_object_t
static SQFS_INLINE void	sqfs_destroy (void *obj)
	Destroy an object and free all its memory.
static SQFS_INLINE void *	sqfs_copy (const void *obj)
	Create a deep copy of an object if possible.
Data Fields inherited from sqfs_object_t
void(*	destroy )(struct sqfs_object_t *instance)
struct sqfs_object_t *(*	copy )(const struct sqfs_object_t *orig)

Detailed Description

Abstracts reading, writing and management of the fragment table.

Member Function Documentation

sqfs_frag_table_append()

SQFS_API int sqfs_frag_table_append	(	sqfs_frag_table_t *	tbl,
		sqfs_u64	location,
		sqfs_u32	size,
		sqfs_u32 *	index
	)

Append a table entry to a fragment table.

Parameters

tbl	A pointer to the fragmen table object.
location	The absolute on-disk location of the new fragment block.
out	The size of the block. Has bit 24 set if compressed.
index	If not NULL, returns the allocated table index.

Returns

Zero on success, an SQFS_ERROR on failure (e.g. allocation failure).

sqfs_frag_table_create()

SQFS_API sqfs_frag_table_t * sqfs_frag_table_create

(

sqfs_u32

flags

)

Create a fragment table.

Parameters

flags

Currently must be set to 0, otherwise this function fails.

Returns

A pointer to a new fragment table object on success, NULL on failure.

sqfs_frag_table_get_size()

SQFS_API size_t sqfs_frag_table_get_size

(

sqfs_frag_table_t *

tbl

)

Get the number of entries stored in a fragment table.

Parameters

tbl	A pointer to the fragmen table object.

Returns

The number of entries currently stored in the table.

sqfs_frag_table_lookup()

SQFS_API int sqfs_frag_table_lookup	(	sqfs_frag_table_t *	tbl,
		sqfs_u32	index,
		sqfs_fragment_t *	out
	)

Resolve a fragment block index to its description.

Parameters

tbl	A pointer to the fragmen table object.
index	The index into the table.
out	Returns the data from the table on success.

Returns

Zero on success, an SQFS_ERROR on failure (e.g. index is out of bounds).

sqfs_frag_table_read()

SQFS_API int sqfs_frag_table_read	(	sqfs_frag_table_t *	tbl,
		sqfs_file_t *	file,
		const sqfs_super_t *	super,
		sqfs_compressor_t *	cmp
	)

Load a fragment table from a SquashFS image.

Parameters

tbl	The fragment table object to load into.
file	The file to load the table from.
super	The super block that describes the location and size of the table.
cmp	The compressor to use for uncompressing the table.

Returns

Zero on success, an SQFS_ERROR on failure.

sqfs_frag_table_set()

SQFS_API int sqfs_frag_table_set	(	sqfs_frag_table_t *	tbl,
		sqfs_u32	index,
		sqfs_u64	location,
		sqfs_u32	size
	)

Modify an existing entry in a fragment table.

Parameters

tbl	A pointer to the fragmen table object.
index	The fragment table index.
location	The absolute on-disk location of the fragment block.
out	The size of the block. Has bit 24 set if compressed.

Returns

Zero on success, an SQFS_ERROR on failure (e.g. out of bounds).

sqfs_frag_table_write()

SQFS_API int sqfs_frag_table_write	(	sqfs_frag_table_t *	tbl,
		sqfs_file_t *	file,
		sqfs_super_t *	super,
		sqfs_compressor_t *	cmp
	)

Write a fragment table to a SquashFS image.

The data from the table is compressed and appended to the given file. The information about the tables size and location are stored in the given super block. Super block flags are updated as well.

Parameters

tbl	The fragment table object to store on disk.
file	The file to append the table to.
super	The super block that should be updated with the location and size of the table.
cmp	The compressor to use for compressing the table.

Returns

Zero on success, an SQFS_ERROR on failure.

---

The documentation for this struct was generated from the following file:

• include/sqfs/frag_table.h
